Five Servo Electric Cylinder Installation Tips for Better Stability

Check mounting alignment, side load, fasteners, cable routing and travel before putting an actuator into service.

In brief: Servo electric cylinder installation affects alignment, repeatability and service life. Confirm the load path and motion limits before the first powered cycle.

Five Servo Electric Cylinder Installation Tips for Better Stability

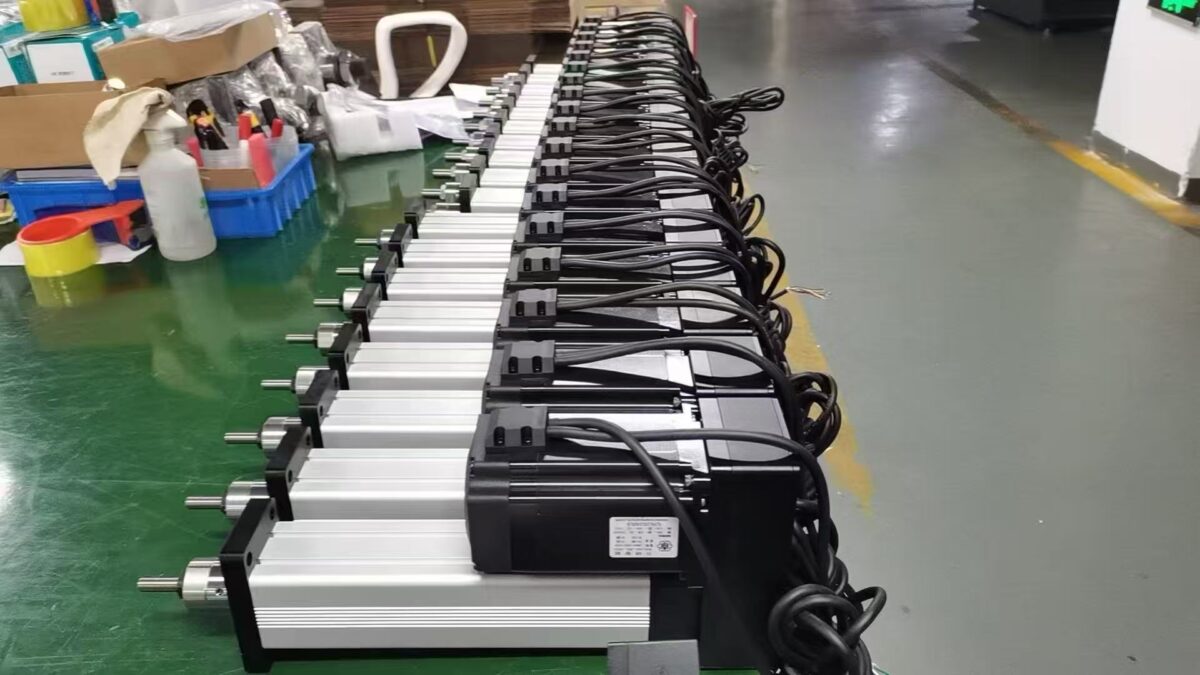

Product photograph for context. Confirm dimensions and limits against the selected model.

servo electric cylinder installation: engineering checklist

Start with the application drawing, operating cycle and model-specific documentation. Record the baseline conditions before adjusting the machine so each test has a clear comparison. The following checks address common failure modes without assuming a universal product rating.

Mounting surface and rigidity

Check the mounting face for flatness, cleanliness and stiffness using the machine drawing and actuator manual. Tighten fasteners to the specified torque and recheck after initial operation. A distorted base can preload the screw or external guide, causing uneven current and wear. The allowable flatness depends on the model and frame.

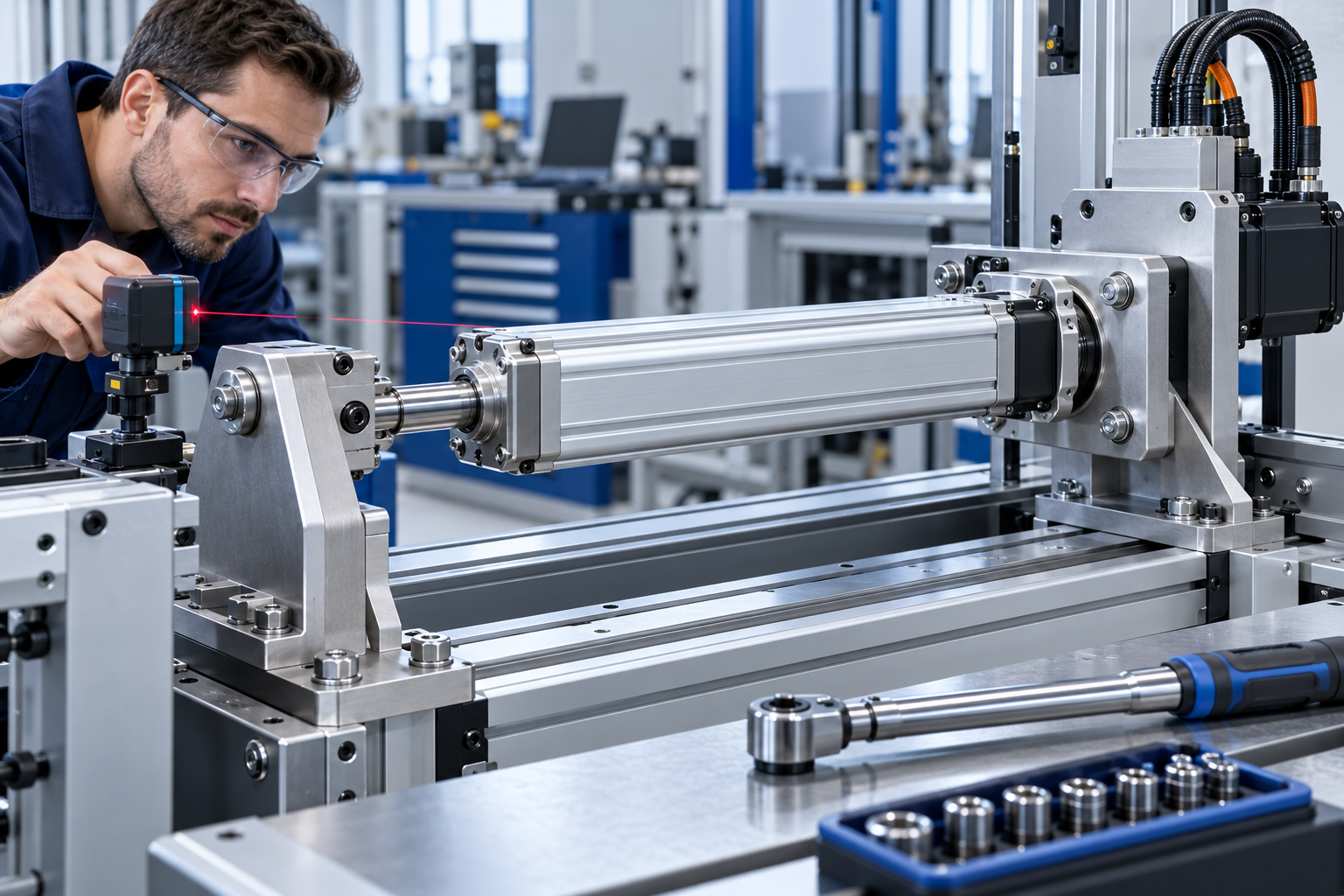

Load connection and external guidance

Align the rod with the guided load through the complete stroke. The actuator should produce axial force; an external rail or bearing should support lateral forces and moments. Inspect the coupling and joint for binding at travel extremes. On a vertical axis, account for gravity, braking and power-loss behavior.

Cable routing and grounding

Separate motor power, feedback and low-voltage signals as directed by the drive supplier. Provide strain relief and an appropriate bend radius for moving cables. Verify protective earth, connectors and shield termination against the wiring diagram. Do not energize the axis with damaged insulation.

Stroke limits and commissioning

Set mechanical clearance and software limits from the actual tooling envelope. First test at reduced speed with a clear area, then monitor position error and current through several cycles. Confirm homing, emergency stop and alarm behavior before returning to production. Record the load, stroke and settings.

Practical verification steps

  1. Record the model, mounting orientation, load, stroke, speed, duty cycle and relevant alarms.
  2. Inspect the mechanical load path and compare measurements with the actual datasheet and drive manual.
  3. Change one condition at a time, log the result and retest the complete operating cycle.
  4. Document the final setting and hand it to maintenance and machine engineering.

Frequently asked question

What information should I send for application support? Provide the actuator model, motion profile, drawings, load and observed symptoms. This enables a more useful model-specific review than a generic force or accuracy claim.
