Servo Electric Cylinder Safety and Operating Precautions

Review guarding, energy isolation, end stops and commissioning precautions for electric cylinder systems.

In brief: Servo electric cylinder safety precautions begin with guarding, load limits, wiring, travel limits and protective devices. Isolate hazardous energy before installation or service.

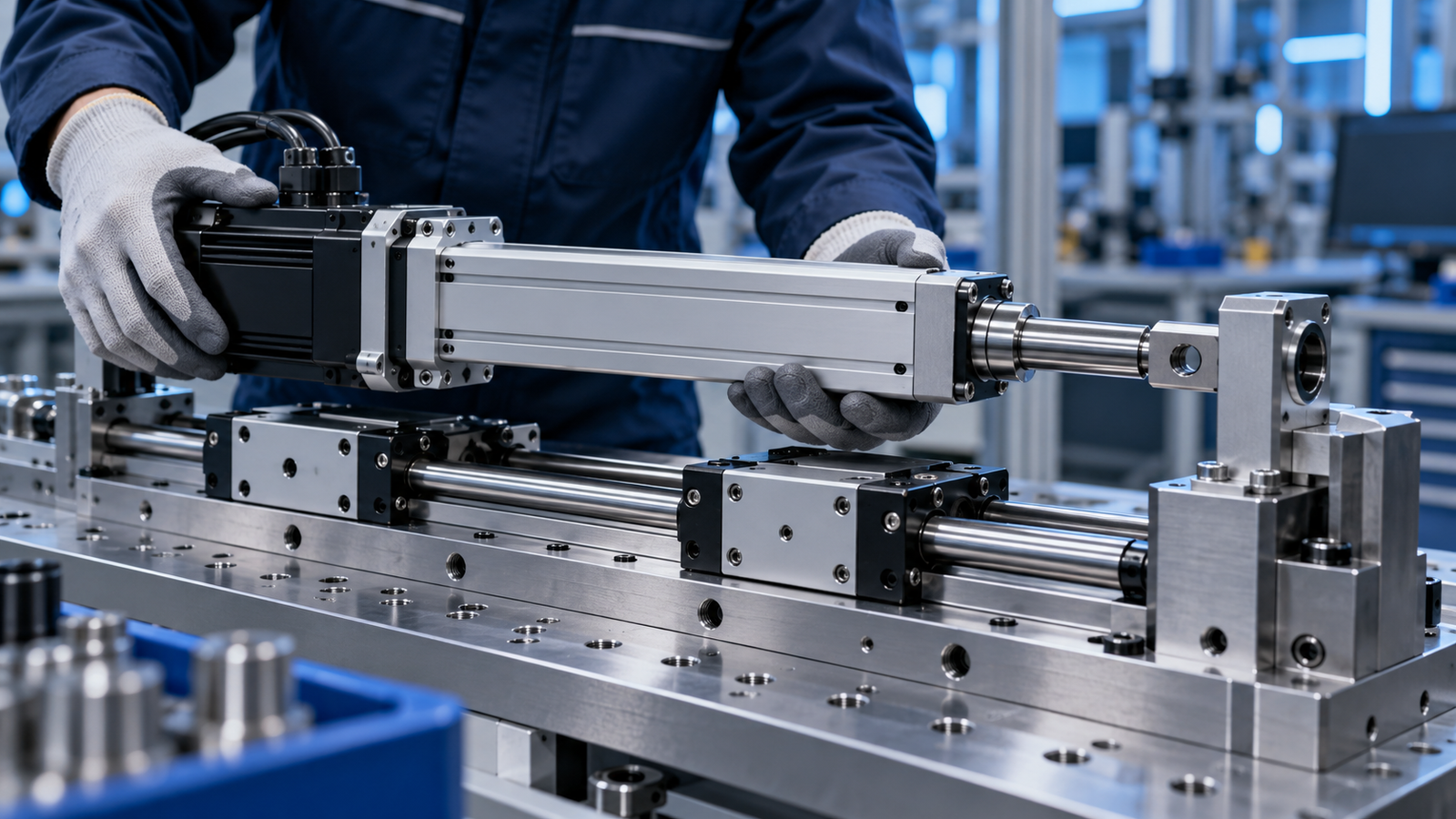

Technician aligning a servo electric cylinder with a guided fixture
Illustrative engineering visual; final configuration depends on the selected model.

Servo electric cylinder safety precautions before motion

  1. Check mounting bolts, support structure and the rod-end connection against the approved machine design.
  2. Confirm the load is guided independently where side loading could occur. Do not use the actuator rod as an unintended guide.
  3. Verify travel limits, home position, cable routing and clearance through the full stroke.
  4. Confirm motor and drive ratings, grounding, feedback wiring, emergency-stop integration and the machine’s risk assessment.

Commission at low speed

Jog without the process load where practical. Verify direction, soft limits and unexpected motion before increasing speed or force. Record motor current, temperature and cycle time under representative conditions. Tune the drive using its manufacturer documentation and the actual machine inertia.

Safe maintenance sequence

Stop motion, isolate all electrical and stored energy sources, secure suspended loads, and verify the machine cannot move unexpectedly. Only trained personnel should open the drive cabinet or work on the mechanism. OSHA’s hazardous energy control guidance explains the general lockout principles; follow the applicable local requirements and site procedure.

Routine checks

Inspect for loose fasteners, abnormal vibration, cable damage, contamination and changes in noise or temperature. Lubrication interval and allowable environment depend on the exact actuator model; use its supplied documentation rather than a universal schedule.

For related guidance, read the selection guide and NEFEIT engineering resources. Contact NEFEIT with the model and duty cycle for model-specific instructions.

Application check

A vertical axis requires a plan for gravity and power loss. Confirm end stops, brake function and emergency behavior under the machine risk assessment. Test the axis initially at reduced speed with the working area controlled. Never remove a guard or clear a recurring alarm merely to complete a production cycle.
