In brief: Electric cylinder alarms are drive or controller responses to detected conditions. Record the exact code first, then inspect power, feedback, motion limits, mechanical load and drive settings in a controlled sequence.
Electric cylinder alarms: five diagnostic steps
Write down the drive model, code, time, operating step and recent changes. Save available current, position, following-error and temperature traces. An alarm name alone is rarely enough to identify the root cause.
2. Check power and feedback

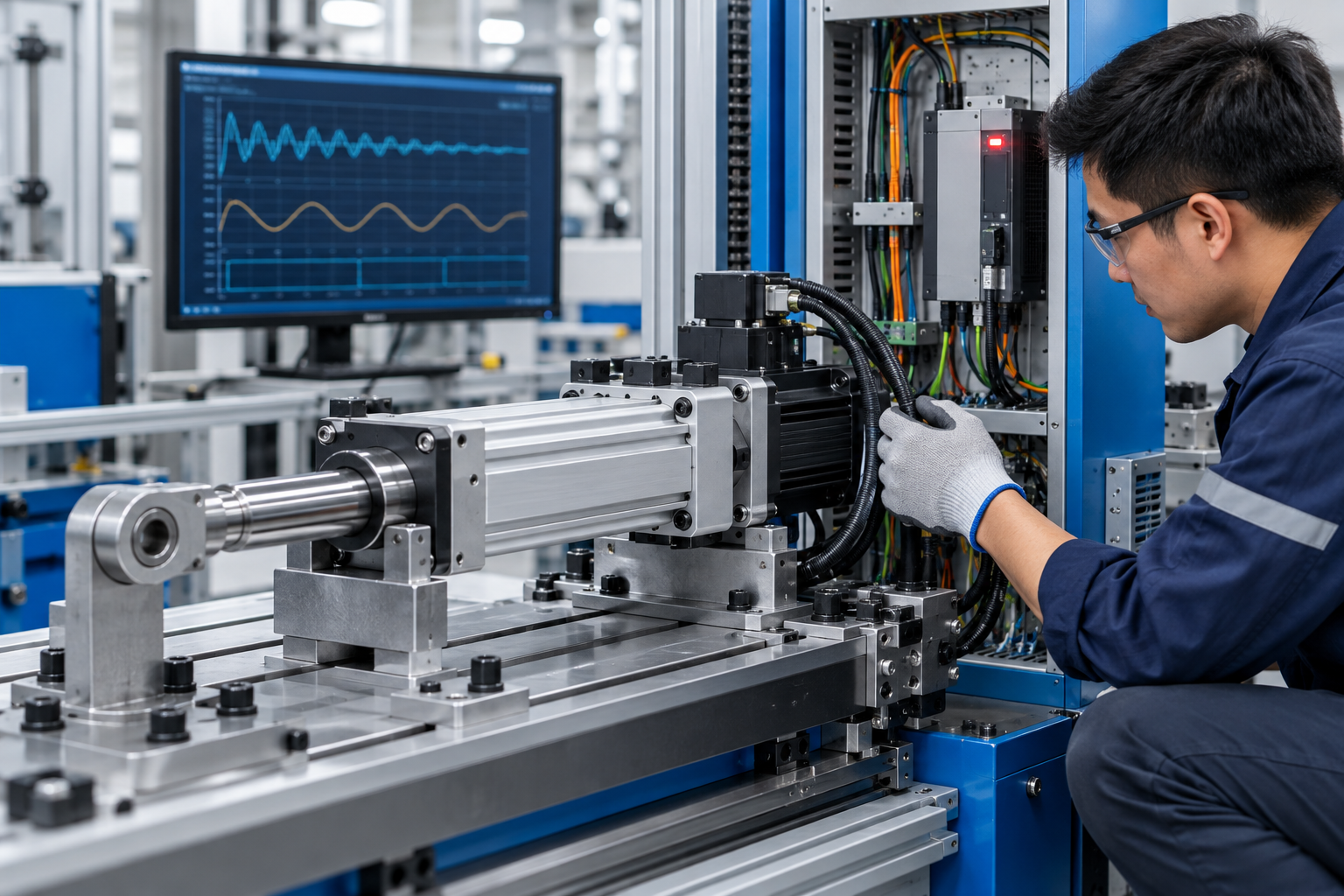

After safe isolation, inspect supply voltage, grounding, motor and encoder connectors and cable strain. Intermittent feedback or a loose connector can appear only during motion. Follow the drive manufacturer’s diagnostic procedure for the specific code.
3. Check travel and mechanical resistance
Inspect end stops, soft limits, alignment, coupling, screw lubrication and contamination. Check whether the load changed, jammed or imposed side force. Do not repeatedly reset an overload alarm before finding the cause.
4. Compare the motion command with capacity
Review acceleration, speed, peak force, continuous duty and drive current limits. A move that succeeds without load may fail under the real process profile. Compare measured traces at the same point in the cycle.
5. Test one correction at a time
After addressing the identified cause, test at reduced speed and load where practical. Document the change and recheck at the normal duty cycle. Escalate to the machine builder or drive supplier if the alarm persists.
For safe service, consult OSHA’s hazardous energy control guidance and local procedures. Read our troubleshooting resources or send NEFEIT the alarm code and application data.
