NEFEIT / INLINE ELECTRIC CYLINDERS

NFT220 Inline Servo Electric Cylinder

The NFT220 inline electric cylinder uses a ball-screw drive with the servo motor on the cylinder axis. To select a configuration, match the motor, screw lead and mounting to your load, stroke and working cycle.

NEFEIT inline servo electric cylinder with motor aligned to the screw axis

Configuration options

Motor on the cylinder axis; reserve axial motor clearance.

Working cycle

Approach, working movement, dwell and return reviewed together.

Mechanical integration

Mounting, load path and independent guidance defined for your machine.

Engineering support

Drive and feedback selection with NEFEIT.

NEFEIT inline servo electric cylinder construction with coaxial motor arrangement
PRODUCT OVERVIEW

Motor on the axis. Space reserved behind the cylinder.

The coaxial motor arrangement creates a direct axial transmission layout. Allow space for the motor, connectors and service access.

Images show the product layout and installation concept. However, the approved configuration drawing defines the assembly supplied.

TECHNICAL SPECIFICATIONS

Select motor, lead, thrust and speed together

ConfigurationReference
Series / arrangementNFT220 / Inline
Reference stroke10–1200 mm
Screw leadApplication sizing
Motor powerApplication sizing
PerformanceReference
Base-body capability limit250 kN
Continuous thrustConfirm rated drive and duty
Mounting interfacesDrawing-defined
Supply scopeConfigured quotation

The manual lists a body capability limit without a complete motor rating matrix. NEFEIT sizes the motor, screw lead, reducer and rated duty from your application.

MOUNTING AND INTERFACES

Check the drawing for this product configuration

Choose the motor arrangement and mounting separately. For example, FA means front flange, FB means rear flange and LB means side flange. FC identifies a custom interface defined by the drawing.

Mechanical drawing

Request flange pattern, body envelope, rod connection and installed length for this configuration.

Tooling support

Provide guide layout, reaction structure and axial alignment requirements.

Utilities and feedback

Confirm motor/drive, sensors, connectors and control responsibilities.

APPLICATION ENGINEERING

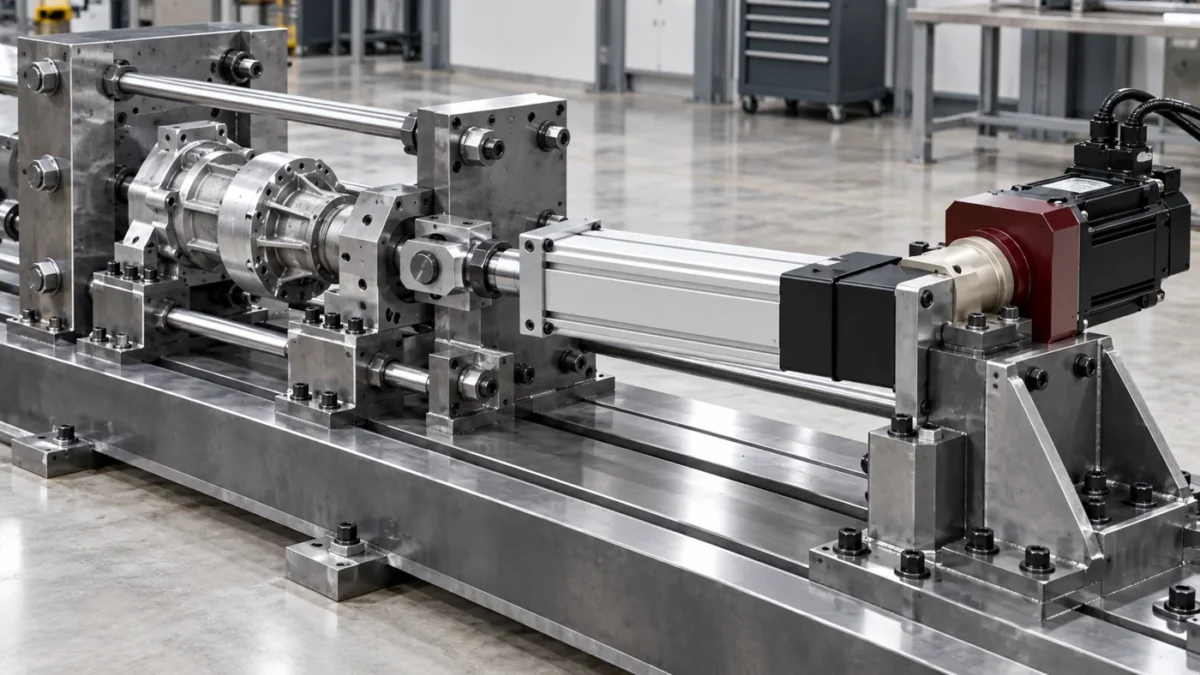

Custom load frames: define the complete reaction structure

An inline drive applies axial load through a supported tool within a substantial reaction frame. The actuator, rod connection, tie structure and opposite fixture form one reviewed load path.

NFT220 servo application concept: Custom load frames: define the complete reaction structure
SELECTION AND DRAWINGS

Provide the inputs that define your configuration

Technical interfaces

Before you design mating parts, review the product drawing and available space with NEFEIT. The approved drawing defines the supplied configuration and mechanical interfaces.

Selection checklist

Order fields: NFT220–stroke–lead–D–mounting–ratio–motor power.

Product selection questions

The body limit describes a catalog capability boundary. Continuous thrust depends on the paired motor, lead, transmission and operating duty.

Inline describes motor placement. Flange or custom mounting is selected independently against the configuration drawing.

The manual associates ±0.01 mm with additional linear feedback. Confirm loaded positioning, repeatability and measurement conditions for the selected system.

The manual describes a non-self-locking ball-screw drive. Review vertical holding, braking and mechanical restraint as part of the complete machine.

NEFEIT ENGINEERING SUPPORT

Select NFT220 for your machine requirements

To request a quotation, send your load, stroke, speed, working cycle and installation drawing. NEFEIT then reviews the motor, feedback and mechanical interfaces with you.
