NFT134 Reinforced Custom Servo Electric Cylinder
NFT134 Reinforced combines a ball-screw axial drive with a application-specific servo motor arrangement. Configure the motor, screw lead and mounting for the required load, travel and operating cycle.
- Motor arrangement — Reinforced assembly and transmission defined by the configuration drawing.
- Stroke reference — 10–1200 mm; final selection includes screw stability and mounting.
Configuration options
Reinforced assembly and transmission defined by the configuration drawing.
Working cycle
Approach, working movement, dwell and return reviewed together.
Mechanical integration
Mounting, load path and independent guidance defined for your machine.
Engineering support
Drive and feedback selection with NEFEIT.
Reinforced axial motion, sized for the complete machine.
Select this variant from its reinforced-specific drawing and rated drive configuration. Frame stiffness and mounting support are reviewed with the working load.
- 10–1200 mm; final selection includes screw stability and mounting.
- Reinforced variant is identified only in the body-limit overview. Request the released mounting drawing and rated configuration.
Images show the product layout and installation concept. However, the approved configuration drawing defines the assembly supplied.
Select motor, lead, thrust and speed together
| Configuration | Reference |
|---|---|
| Series / arrangement | NFT134 Reinforced / Application-specific |
| Reference stroke | 10–1200 mm |
| Screw lead | Application sizing |
| Motor power | Application sizing |
| Performance | Reference |
|---|---|
| Base-body capability limit | 70 kN |
| Continuous thrust | Confirm rated drive and duty |
| Mounting interfaces | Drawing-defined |
| Supply scope | Configured quotation |
The manual lists a body capability limit without a complete motor rating matrix. NEFEIT sizes the motor, screw lead, reducer and rated duty from your application.
Check the drawing for this product configuration
Choose the motor arrangement and mounting separately. For example, FA means front flange, FB means rear flange and LB means side flange. FC identifies a custom interface defined by the drawing.
Mechanical drawing
Request flange pattern, body envelope, rod connection and installed length for this configuration.
Tooling support
Provide guide layout, reaction structure and axial alignment requirements.
Utilities and feedback
Confirm motor/drive, sensors, connectors and control responsibilities.

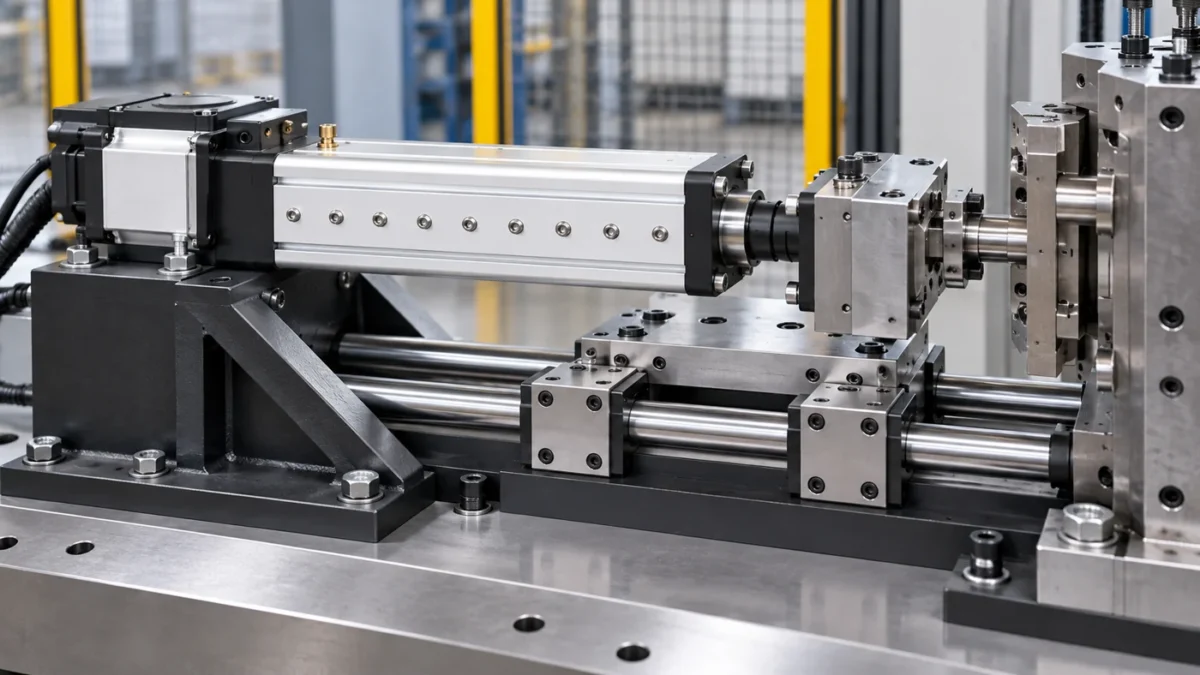

Reinforced configurations: review the frame and interfaces
A folded transmission arrangement drives a guided axial tool toward an opposing fixture. The reinforced configuration is selected together with frame stiffness, rod connection and mounting interfaces.
- Request the reinforced-specific configuration drawing
- Confirm motor and lead ratings for this variant
- Do not substitute standard NFT134 dimensions
Provide the inputs that define your configuration
Technical interfaces
Before you design mating parts, review the product drawing and available space with NEFEIT. The approved drawing defines the supplied configuration and mechanical interfaces.
Selection checklist
- Working and peak load, orientation and load direction
- Required stroke and approach, working and return speeds
- Cycles per minute, dwell and operating hours
- Mounting envelope, motor/drive and feedback requirements
Order fields: NFT134 Reinforced–stroke–lead–FC–mounting–ratio–motor power.
Product selection questions
The body limit describes a catalog capability boundary. Continuous thrust depends on the paired motor, lead, transmission and operating duty.
Application-specific describes motor placement. Flange or custom mounting is selected independently against the configuration drawing.
The manual associates ±0.01 mm with additional linear feedback. Confirm loaded positioning, repeatability and measurement conditions for the selected system.
The manual describes a non-self-locking ball-screw drive. Review vertical holding, braking and mechanical restraint as part of the complete machine.
Select NFT134 Reinforced for your machine requirements
To request a quotation, send your load, stroke, speed, working cycle and installation drawing. NEFEIT then reviews the motor, feedback and mechanical interfaces with you.
