NEFEIT Servo Press Control and Integration System
Configure a servo press control package around the actuator, tooling and measurement chain. Compare PLC, open-loop and full closed-loop integration according to the required process evidence.
- Cylinder options — Standard electric cylinders or dedicated ZDG-series press-cylinder options are identified in the catalog.
- Process control — Define approach, contact, pressing, dwell, return and fault recovery as separate motion phases.
Configuration options
Standard electric cylinders or dedicated ZDG-series press-cylinder options are identified in the catalog.
Working cycle
Approach, working movement, dwell and return reviewed together.
Mechanical integration
Mounting, load path and independent guidance defined for your machine.
Engineering support
Drive and feedback selection with NEFEIT.
Cylinder options
Standard electric cylinders or dedicated ZDG-series press-cylinder options are identified in the catalog.
Process control
Define approach, contact, pressing, dwell, return and fault recovery as separate motion phases.
Data interfaces
Catalog precision press systems describe TCP/IP data/status transfer; confirm protocol and available records.
Select the feedback architecture
Encoder-only positioning and direct linear measurement have different error paths. Choose the measurement reference required at the tool under load.
- Define approach, contact, pressing, dwell, return and fault recovery as separate motion phases.
- Catalog precision press systems describe TCP/IP data/status transfer; confirm protocol and available records.
Images show the product layout and installation concept. However, the approved configuration drawing defines the assembly supplied.
Configuration specifications
| Integration | Feedback and catalog reference | Application review |
|---|---|---|
| PLC-based | Catalog repeat positioning ±0.01 mm; force reference 1% FS | Verify cycle and measurement chain |
| Open-loop precision press | Dedicated press-cylinder option; repeat positioning ±0.005 mm; force reference 1% FS | Confirm encoder, tooling and pressure feedback |
| Full closed-loop precision press | Linear scale plus internal/external force sensor options; repeat positioning ±0.003 mm; force reference 0.5% FS | Confirm loaded accuracy and calibrated sensor range |
Catalog references apply to the stated configuration. Confirm tooling, sustained duty and calibrated measurement conditions.
Check the drawing for this product configuration
Confirm the mounting, tool interface and full movement envelope for the selected process configuration.
Mechanical drawing
Request flange pattern, body envelope, rod connection and installed length for this configuration.
Tooling support
Provide guide layout, reaction structure and axial alignment requirements.
Utilities and feedback
Confirm motor/drive, sensors, connectors and control responsibilities.

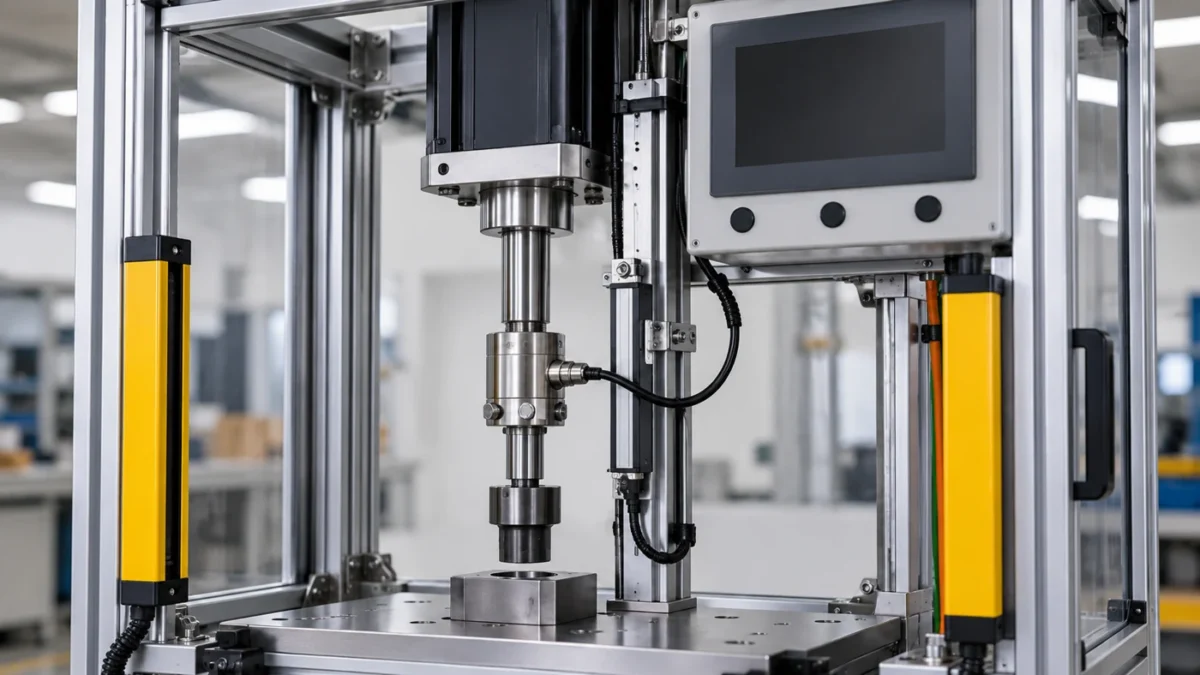

Feedback integration: measure at the process load path
An inline force sensor sits between the actuator and tool, with a separate position-measurement arrangement alongside the axis. Sensor interfaces, calibration and loaded reference points define the measurement chain.
- Select encoder or direct linear measurement
- Confirm force sensor range and mounting
- Define TCP/IP records and validated quality rules
Provide the inputs that define your configuration
Technical interfaces
Before you design mating parts, review the product drawing and available space with NEFEIT. The approved drawing defines the supplied configuration and mechanical interfaces.
Selection checklist
- Actuator, drive, force sensor and position-feedback interfaces
- Approach, contact, pressing, dwell and return phases
- Validated process acceptance rules and calibration
- Required TCP/IP records, electrical scope and fault recovery
The quotation confirms the mechanical, electrical, feedback and integration scope.
Product selection questions
Catalog references apply to the stated configuration. Confirm tooling, sustained duty and calibrated measurement conditions.
Support the workpiece and guide the tool independently. Review axial alignment, frame stiffness and transverse-load isolation.
Agree calibrated sensor ranges, loaded measurement conditions and trials with the actual parts. Catalog accuracy figures are configuration references.
Confirm the actuator, motor/drive, drawing, feedback, controller and tooling responsibilities for the supplied scope.
Select Servo Press Integration for your machine requirements
To request a quotation, send your load, stroke, speed, working cycle and installation drawing. NEFEIT then reviews the motor, feedback and mechanical interfaces with you.
