NEFEIT 500 kgf Closed-Loop Servo Press
A configured NEFEIT 500 kgf servo press combining controlled travel with process-force feedback. Define tooling, working-force range and force-displacement acceptance before releasing the machine.
- Force and displacement — Closed-loop position and force feedback support process evaluation; calibration and fixture behavior matter.
- Two speed regimes — Up to 250 mm/s catalog travel speed; 0-30 mm/s pressing speed.
Configuration options
Closed-loop position and force feedback support process evaluation; calibration and fixture behavior matter.
Working cycle
Approach, working movement, dwell and return reviewed together.
Mechanical integration
Mounting, load path and independent guidance defined for your machine.
Engineering support
Drive and feedback selection with NEFEIT.
Force and displacement
Closed-loop position and force feedback support process evaluation; calibration and fixture behavior matter.
Two speed regimes
Up to 250 mm/s catalog travel speed; 0-30 mm/s pressing speed.
Machine integration
The photo shows the catalog machine layout. Tooling, guarding and utilities are confirmed for each quotation.
Define the acceptable assembly
Specify the insertion depth, approach clearance, working-force window, dwell and return. Use validated parts to establish the force-displacement acceptance envelope.
- Up to 250 mm/s catalog travel speed; 0-30 mm/s pressing speed.
- The photo shows the catalog machine layout. Tooling, guarding and utilities are confirmed for each quotation.
Images show the product layout and installation concept. However, the approved configuration drawing defines the assembly supplied.
Configuration specifications
| Parameter | Catalog reference |
|---|---|
| Thrust range | 0-500 kgf |
| Stroke | 250 mm |
| Motor power | 1000 W |
| Maximum travel speed | 250 mm/s |
| Pressing speed | 0-30 mm/s |
| Force accuracy | 0.5% FS |
| Positioning accuracy | ±0.01 mm |
| Repeat positioning | ±0.005 mm |
| Supply | 220 V 50 Hz / 380 V 50 Hz; confirm configuration |
| Worktable | 400 × 300 mm |
Catalog references apply to the stated configuration. Confirm tooling, sustained duty and calibrated measurement conditions.
Check the drawing for this product configuration
Confirm the mounting, tool interface and full movement envelope for the selected process configuration.
Mechanical drawing
Request flange pattern, body envelope, rod connection and installed length for this configuration.
Tooling support
Provide guide layout, reaction structure and axial alignment requirements.
Utilities and feedback
Confirm motor/drive, sensors, connectors and control responsibilities.

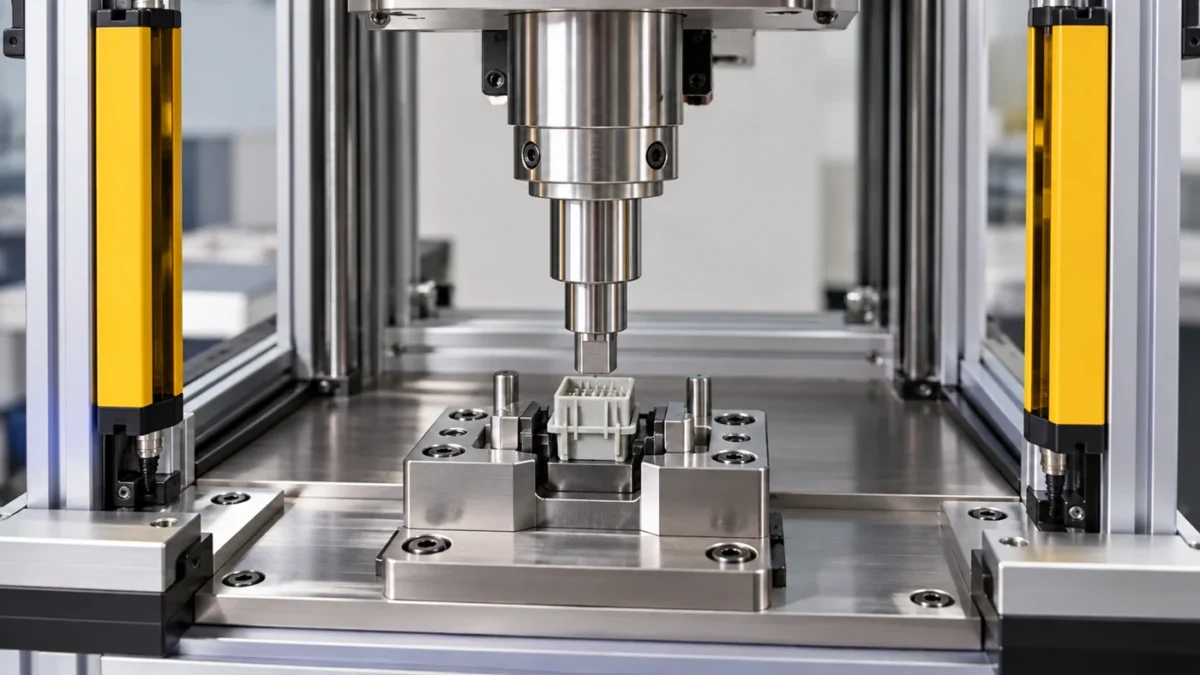

Connector insertion: control contact and seating
The press tool approaches a connector supported in a machined nest. Controlled working movement and calibrated force feedback help define a seating window appropriate to the connector.
- Set approach clearance and insertion depth
- Validate the force window on qualified parts
- Choose sensor range for the actual working force
Provide the inputs that define your configuration
Technical interfaces
Before you design mating parts, review the product drawing and available space with NEFEIT. The approved drawing defines the supplied configuration and mechanical interfaces.
Selection checklist
- Part drawing, fit tolerance and support surfaces
- Approach clearance, insertion depth and working speed
- Force sensor range and calibrated measurement requirements
- Validated acceptance windows and production cycle
The quotation confirms the mechanical, electrical, feedback and integration scope.
Product selection questions
Catalog references apply to the stated configuration. Confirm tooling, sustained duty and calibrated measurement conditions.
Support the workpiece and guide the tool independently. Review axial alignment, frame stiffness and transverse-load isolation.
Agree calibrated sensor ranges, loaded measurement conditions and trials with the actual parts. Catalog accuracy figures are configuration references.
Confirm the actuator, motor/drive, drawing, feedback, controller and tooling responsibilities for the supplied scope.
Select Closed-Loop Press 500 kgf for your machine requirements
To request a quotation, send your load, stroke, speed, working cycle and installation drawing. NEFEIT then reviews the motor, feedback and mechanical interfaces with you.
