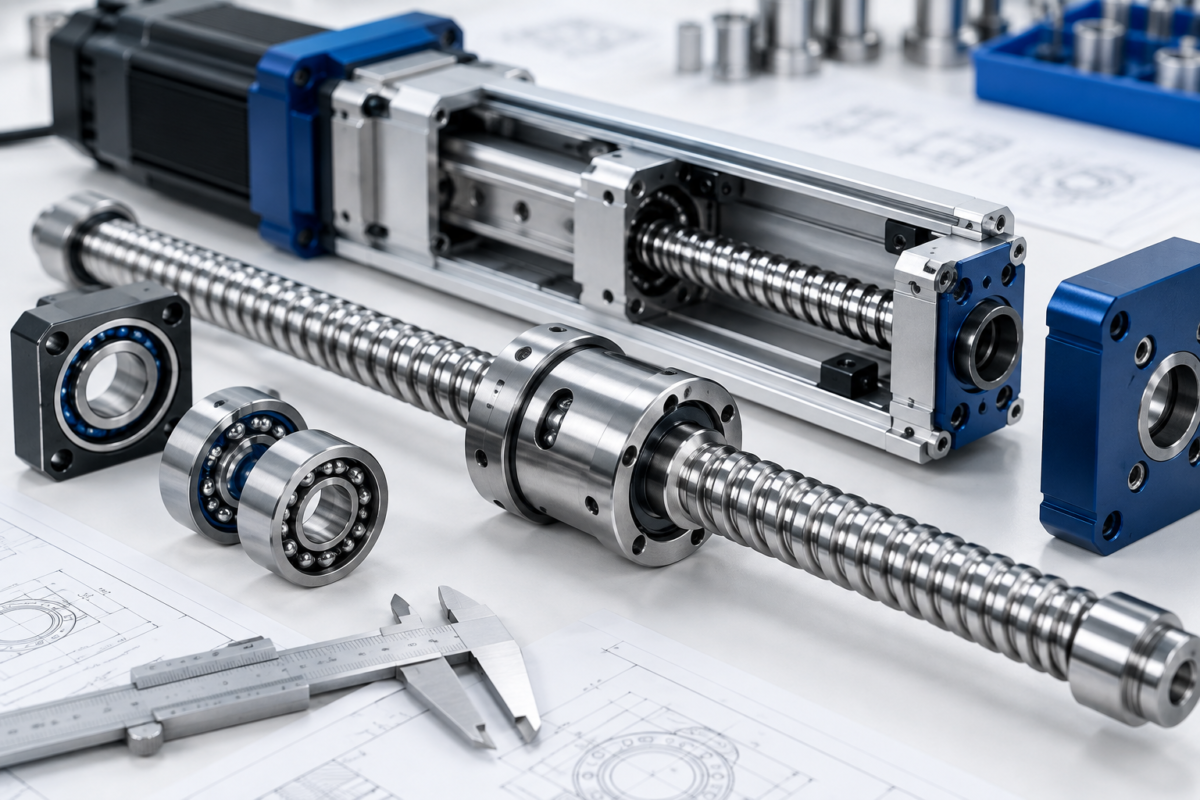

How to Select the Ball Screw Diameter for a Servo Electric Cylinder

In the design and selection of servo electric cylinder, ball screw diameter size is a critical consideration. The correct selection of the ball screw diameter size ensures the performance and lifetime of electric cylinder. So, what’s the basis for choosing the size of the ball screw diameter? Nefeit is a leading brand in the industry.

First, consideration should be given to the load requirements of servo electric cylinder. Applications with higher load requirements typically require a larger diameter at ball screw to ensure sufficient rigidity and load capacity. When selecting the diameter of ball screw, account is taken of the size and nature of the load to ensure that electric cylinder works in a stable and reliable manner.

Second, consideration should be given to the speed and precision required. Largest ball screw usually has high rigidity and is suitable for high-speed and high-precision applications. Therefore, when selecting the diameter of ball screw, the optimal diameter size is determined by the required speed and accuracy level.

Security considerations also need to be taken into account. The larger diameter, ball screw, usually has a higher safety factor, which can better resist load mutations and overloads and thus improves the safety performance of electric cylinder.

In general, the selection of the diameter size of servo electric cylinderball screw requires a combination of load requirements, speed accuracy, safety performance, etc. The rational choice of the diameter size of ball screw ensures that it works in a stable and reliable manner in a variety of applications to improve the performance and life of the equipment.
